YCF 系列风机专用电动机
YCF Series Special Purpose Induction Motor For Fans

        本系列专用电动机是专为轴流风机配套而设计的,是Y系列三相异步电动机的派生产品,具有噪声低、重量轻、经久耐用等特点。
防护等级:IP55
冷却方式:IC0041
绝缘等级:B
额定电压:380V
额定频率:50HZ
        These series special purpose motors are special designed for axial fans complement,which are derived form Y series three-phase induction motor.These series motors have low moise,light weight,long service life.etc
Proteetion type:IP55
Cooling type:IC0041
Insulation class:B
Rated voltage:380V
Rated frequency:50HZ

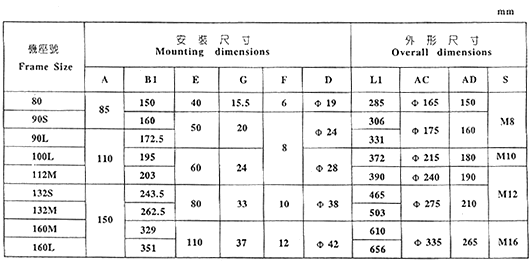

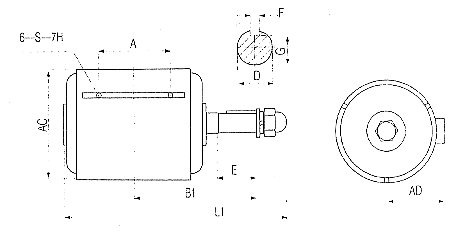

外形及安装尺寸 Mounting and overall dimensions
