产品展示
产品展示

       本系列电动机以降低噪声为目的，按中国最新标准并吸取国际上同类产品的优点进行设计和制造，具有噪声低、振动小、体积小、重量轻、运行可靠、维护方便等特点。
本系列电动机适用小型玻璃钢冷却塔风机
防护等级：IP55
冷却方式：IC0041
绝缘等级：B
额定电压：380V
额定频率：50HZ
       This series motor is designed and manufctured in accordance with the newest Chinese standards and of incorporating theadvantages of the counterparts in the world,with olw noise,little vibration,compact dimensions,light weight,reliable operation,easy maintenance,etc.
       This series motor is suitable for use in the fans of small cooling towers.
Proteetion type:IP55
Cooling type:IC0041
Insulation class:B
Rated voltage:380V
Rated frequency:50HZ

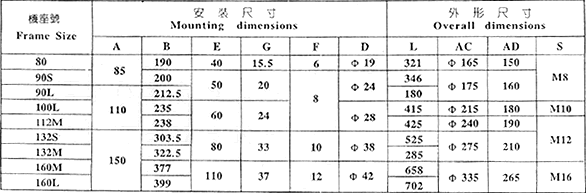

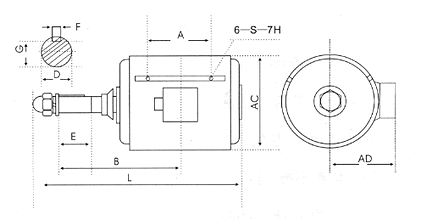

外形及安装尺寸 Mounting and overall dimensions
